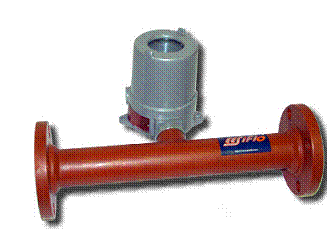

EESiFlo’s Online BS&W Monitor is a solid state electronic instrument that determines the percent watercut in an oil emulsion without requiring the physical separation of the fluids. The probe technique employed by the Watercut Monitor relates to measurement of dielectric strength of the water oil emulsion allows the emulsion stream to be continuously surveyed. The frequency generated by the water in oil monitor is determined by the water cut of the emulsion stream in the probe. The Water cut Monitor calculates capacitance measurement by digital techniques. The result is a 4-20mA output signal which varies linearly with watercut. The cut monitor is run on loop power and easy to install. The Water cut Monitor range is site or user selectable from 0 –1%, 0-3%, 0-10%, 0-25% and optionally 0-65%

For more information on the EASZ-1 BS and W monitor, please contact your local EESiFlo representative or log onto www.eesiflo.com

General Specifications

Water in Oil range XL versions Water in Oil range XH versions Recommended Flow Range Resolution Temperature compensation Temperature range Shipping Weight

0-1%,0-3%,0-10% and 0-25% 0-65% 60 to 1300 Barrels per day 0.1% water (Typical) Built in Temperature compensation 0-190 °C or 380 °F Approximately 6kg

MECHANICAL

Cell Construction Material Pipe Connection Maximum Temperature Pressure Rating

Carbon Steel or 316/ 316L (NACE on request) 2 inch 150/300/ 600 B16.5 ANSI CLASS RF 190 °C/380 °F 100 Bar (maximum ) 1440 PSI

ELECTRICAL

Power Requirements Electronic Protection Operating Temperature Enclosure Outputs Options

Loop Power or 24 vdc Nema 7X Class 1 Div1 Group D -40 °F -185 °F (-40 °C to 85 °C) Anodized Aluminium Epoxy Coated 4-20 mA DC , RS232 Full Duplex ,Optional RS485 Explosionproof Remote readout/display
